一. 基础

参考资料

调用案例

CONSTANST.ts

/**
 * 照相机通道类型
 */
export enum channelEnum {
  /**
   * 正常 彩色通道
   */
  normal = 1,
  /**
   * 温度 热成像通道
   */
  therm = 2,
}
/**
 * 码流类型
 */
export enum streamEnum {
  /**
   * 主码流
   */
  main = 0,
  /**
   * 辅码流1
   */
  auxiliary1 = 1,
  /**
   * ### 辅码流2 现在不可用！！！
   */
  // auxiliary2 = 2,
}

/**
 * 摄像机弹窗dom元素最大、最小宽度、高度
 */
export const cameraLiveDomStyle = {
  /**
   * 摄像机弹窗-最小宽度-px
   */
  minW: 280,
  /**
   * 摄像机弹窗-最小高度-px
   */
  minH: 200,
  /**
   * 摄像机弹窗-最大宽度-px
   */
  maxW: Math.floor(window.innerWidth * 0.9),
  /**
   * 摄像机弹窗-最大高度-px
   */
  maxH: Math.floor(window.innerHeight * 0.9),
  /**
   * 默认宽度-px 45vw or 625px(当45vw < 625px时; 取625px)
   */
  defaultWidth: Math.floor(window.innerHeight * 0.45) < 625 ? 625 : Math.floor(window.innerHeight * 0.45),

  /**
   * 默认高度-px
   */
  defaultHeight: 360,

  /**
   * 默认top-百分比%
   */
  defaultTop: '25%',

  /**
   * 默认left-百分比%
   */
  defaultLeft: '30%',
};

/**
 * 缩小的 操作类型
 */
export enum zoomMinEnum {
  /**
   * 缩小至左下角
   */
  moveLbMin = 1,
  /**
   * 缩小至右下角
   */
  moveRbMin = 2,
}

/**
 * 摄像头测试配置信息
 */
export const urlInfo = {
  /**
   * 连接协议
   */
  cameraConnProtocol: (window.siteConfig as any).camera?.cameraConnProtocol || 'wss',
  /**
   * websocket 服务端口
   * 80 - http
   * 443 - https
   */
  cameraConnWSPort: (window.siteConfig as any).camera?.cameraConnWSPort || 443,
  /**
   * RTSP 服务端口(默认为 554)
   */
  cameraConnRTSPPort: (window.siteConfig as any).camera?.cameraConnRTSPPort || 554,
  /**
   * 主机地址
   */
  cameraConnHost:
    (window.siteConfig as any).camera?.cameraConnHost ||
    import.meta.env.VITE_APP_CAMERA_CONNHOST ||
    'opspre.imyunxia.com',
};

/**
 * 摄像枪错误码枚举
 * - 参考文档
 *   - (国际化键值对) https://open-icc.dahuatech.com/wsplayer/#/api
 */
export enum cameraErrorCodeEnum {
  /**
   * 网络链接状况不好, 延时大于8秒
   */
  notGoodNet = 101,
  /**
   * 不支持当前音频格式
   */
  unknownAudioFormat = 201,
  /**
   * webSocket 发生错误
   */
  webSocketError = 202,
  /**
   * webSocket 已关闭
   */
  webSocketClosed = 207,
  /**
   * 找不到流-RTSP 地址没找到
   */
  notFoundStream = 404,
  /**
   * SETUP 服务不可用
   */
  notUseSETUPService = 503,
}

useDomResize.ts

import { onBeforeUnmount } from 'vue';
import { cameraLiveDomStyle } from './CONSTANST';

/**
 * ### 左下角/右下角缩放(未兼容移动端)
 * @param pDomSelector 父元素的 id/class选择器
 */
export function DomZoomScale(pDomSelector = '#cameraLiveWrapper') {
  let dom: HTMLDivElement;
  let resizeHandleDomR: HTMLDivElement;
  let isResizing = false;
  let startX;
  let startY;
  let startWidth;
  let startHeight;

  function register() {
    dom = document.querySelector(pDomSelector) as HTMLDivElement;
    if (!dom) return;
    resizeHandleDomR = document.createElement('div');
    resizeHandleDomR.style.cssText =
      'position: absolute; z-index: 5; width: 20px; height: 20px; right: 0; bottom: 0; cursor: se-resize;';

    dom.append(resizeHandleDomR);
    resizeHandleDomR.onmousedown = handleMouseDown;
  }

  function handleMouseDown(e: MouseEvent) {
    e.preventDefault();
    isResizing = true;

    // 获取初始位置
    startX = e.clientX;
    startY = e.clientY;
    startWidth = dom.offsetWidth;
    startHeight = dom.offsetHeight;

    document.addEventListener('mousemove', onMouseMove);
    document.addEventListener('mouseup', onMouseUp);
  }

  // 鼠标移动时
  function onMouseMove(e) {
    if (isResizing) {
      const dx = e.clientX - startX;
      const dy = e.clientY - startY;
      let newWidth = startWidth + dx;
      let newHeight = startHeight + dy;

      const newMaxW = Math.ceil(
        ((100 - parseFloat(dom.style.left || cameraLiveDomStyle.defaultLeft)) / 100) * window.innerWidth,
      );
      const newMaxH = Math.ceil(
        ((100 - parseFloat(dom.style.top || cameraLiveDomStyle.defaultTop)) / 100) * window.innerHeight,
      );
      newWidth = newWidth >= newMaxW ? newMaxW : newWidth;
      newHeight = newHeight >= newMaxH ? newMaxH : newHeight;
      if (newWidth > cameraLiveDomStyle.minW && newHeight > cameraLiveDomStyle.minH) {
        dom.style.width = `${newWidth}px`;
        dom.style.height = `${newHeight}px`;
      }
    }
  }

  // 鼠标释放时停止缩放
  function onMouseUp() {
    isResizing = false;
    resizeHandleDomR = null;
    document.removeEventListener('mousemove', onMouseMove);
    document.removeEventListener('mouseup', onMouseUp);
  }

  onBeforeUnmount(() => {
    onMouseUp();
    dom = null;
  });

  return {
    register,
    unregister: onMouseUp,
  };
}

/**
 * ### 兼容移动端-dom元素缩放
 * @param pDomSelector 父元素的 id/class选择器
 */
export function TouchScale(pDomSelector = '#cameraLiveWrapper') {
  const store = {
    isScaling: false,
    distance: 0,
  };

  function touchstart(event: TouchEvent) {
    const { touches } = event;
    if (touches.length === 2) {
      const [touch1, touch2] = Array.from(touches);
      store.isScaling = true;
      store.distance = Math.sqrt(
        Math.ceil(touch2.clientX - touch1.clientX) ** 2 + Math.ceil(touch2.clientY - touch1.clientY) ** 2,
      );
    }
  }
  function touchmove(event: TouchEvent) {
    event.preventDefault();

    if (!store.isScaling) return;
    const { touches } = event;
    if (touches.length === 2) {
      touchMove(event);
    }
  }
  function touchend() {
    store.isScaling = false;
  }

  function touchcancel() {
    store.isScaling = false;
  }

  function touchMove(event: TouchEvent) {
    const { touches, currentTarget } = event;
    const target = currentTarget as HTMLDivElement;
    const [touch1, touch2] = Array.from(touches);
    const newDistance = Math.sqrt(
      Math.ceil(touch2.clientX - touch1.clientX) ** 2 + Math.ceil(touch2.clientY - touch1.clientY) ** 2,
    );
    const scale = +(newDistance / store.distance).toFixed(3);
    store.distance = newDistance;

    updateStyle(target, scale);
  }

  function updateStyle(target: HTMLDivElement, scale: number) {
    let newWidth = target.style.width ? parseFloat(target.style.width) : cameraLiveDomStyle.defaultWidth;
    let newHeight = target.style.height ? parseFloat(target.style.height) : cameraLiveDomStyle.defaultHeight;
    newWidth = Math.ceil(newWidth * scale);
    newHeight = Math.ceil(newHeight * scale);

    const newMaxW = Math.ceil(
      ((100 - parseFloat(target.style.left || cameraLiveDomStyle.defaultLeft)) / 100) * window.innerWidth,
    );
    const newMaxH = Math.ceil(
      ((100 - parseFloat(target.style.top || cameraLiveDomStyle.defaultTop)) / 100) * window.innerHeight,
    );
    newWidth = newWidth >= newMaxW ? newMaxW : newWidth;
    newHeight = newHeight >= newMaxH ? newMaxH : newHeight;
    if (newWidth > cameraLiveDomStyle.minW && newHeight > cameraLiveDomStyle.minH) {
      target.style.width = `${newWidth}px`;
      target.style.height = `${newHeight}px`;
    }
  }

  function register() {
    const dom = document.querySelector(pDomSelector) as HTMLDivElement;
    if (!dom) return;
    dom.addEventListener('touchstart', touchstart);
    dom.addEventListener('touchmove', touchmove);
    dom.addEventListener('touchend', touchend);
    dom.addEventListener('touchcancel', touchcancel);
  }

  function unregister() {
    const dom = document.querySelector(pDomSelector) as HTMLDivElement;
    if (!dom) return;
    dom.removeEventListener('touchstart', touchstart);
    dom.removeEventListener('touchmove', touchmove);
    dom.removeEventListener('touchend', touchend);
    dom.removeEventListener('touchcancel', touchcancel);
  }

  onBeforeUnmount(() => {
    unregister();
  });

  return {
    register,
    unregister,
  };
}

useDomMove.ts

import { onBeforeUnmount } from 'vue';
import { cameraLiveDomStyle } from './CONSTANST';

/**
 * ### dom元素移动(未兼容移动端)
 * @param pDomSelector 父元素的 id/class选择器
 */
export function DomZoomMove(pDomSelector = '#cameraLiveWrapper') {
  /**
   * 触发移动的dom元素
   */
  let moveDom: HTMLDivElement;
  let isDraging = false;
  let offsetY = 0;
  let offsetX = 0;

  /**
   *
   * @param selector id/class 选择器
   */
  function register(selector: string) {
    moveDom = document.querySelector(selector) as HTMLDivElement;
    if (!moveDom) return;
    moveDom.onmousedown = handleMouseDown;
    // moveDom.onmouseleave = handleMouseUp;
  }

  function handleMouseDown() {
    document.addEventListener('mousemove', handleMousemove);
    document.addEventListener('mouseup', handleMouseUp);
  }
  function handleMouseUp() {
    isDraging = false;
    document.removeEventListener('mouseup', handleMouseUp);
    document.removeEventListener('mousemove', handleMousemove);
  }
  function handleMousemove(e: MouseEvent) {
    if (!isDraging) {
      offsetY = e.offsetY;
      offsetX = e.offsetX;
      isDraging = true;
      return;
    }

    const dom = document.querySelector(pDomSelector) as HTMLDivElement;
    if (dom) {
      const curWidth = dom.clientWidth;
      const curHeight = dom.clientHeight;

      let tPx = e.clientY - offsetY;
      let lPx = e.clientX - offsetX;
      tPx = tPx > 0 ? tPx : 0;
      lPx = lPx > 0 ? lPx : 0;
      let top = +((tPx / window.innerHeight) * 100).toFixed(2);
      let left = +((lPx / window.innerWidth) * 100).toFixed(2);
      top = top >= 80 ? 80 : top;
      left = left >= 90 ? 90 : left;
      dom.style.top = `${top}%`;
      dom.style.left = `${left}%`;
      dom.style.width = `${curWidth}px`;
      dom.style.height = `${curHeight}px`;
    }
  }

  function unregister() {
    if (moveDom) {
      isDraging = false;
      document.removeEventListener('mouseup', handleMouseUp);
      document.removeEventListener('mousemove', handleMousemove);
      moveDom.onmousedown = null;
      // moveDom.onmouseleave = null;
    }
  }

  onBeforeUnmount(() => {
    unregister();
  });

  return {
    register,
    unregister,
  };
}

/**
 * ### 兼容移动端-dom元素移动
 * TODO pointer Event https://blog.csdn.net/qq_45472813/article/details/131484480
 * @param pDomSelector 父元素的 id/class选择器
 */
export function TouchMove(pDomSelector = '#cameraLiveWrapper') {
  const store = {
    isTouched: false,
    offsetX: 0,
    offsetY: 0,
  };

  function touchstart(event: TouchEvent) {
    const { touches } = event;
    if (touches.length === 1) {
      const [touch] = Array.from(touches);

      store.isTouched = true;

      store.offsetX = touch.pageX;
      store.offsetY = touch.pageY;
    }
  }
  function touchmove(event: TouchEvent) {
    if (!store.isTouched) return;
    const { touches } = event;

    if (touches.length === 1) {
      event.preventDefault();
      touchMove(event);
    }
  }
  function touchend() {
    store.isTouched = false;
  }

  function touchcancel() {
    store.isTouched = false;
  }

  function touchMove(event: TouchEvent) {
    const { touches, currentTarget } = event;
    const [touch] = Array.from(touches);
    const target = currentTarget as HTMLDivElement;
    const offsetX = touch.pageX;
    const offsetY = touch.pageY;

    updateStyle(target, offsetX, offsetY);
  }

  function updateStyle(target: HTMLDivElement, offsetX: number, offsetY: number) {
    const diffX = offsetX - store.offsetX;
    const diffY = offsetY - store.offsetY;

    store.offsetX = offsetX;
    store.offsetY = offsetY;
    let leftPix = (parseFloat(target.style.left || cameraLiveDomStyle.defaultLeft) / 100) * window.innerWidth;
    let topPix = (parseFloat(target.style.top || cameraLiveDomStyle.defaultTop) / 100) * window.innerHeight;
    leftPix = Math.ceil(leftPix + diffX);
    topPix = Math.ceil(topPix + diffY);
    let left = +((leftPix / window.innerWidth) * 100).toFixed(2);
    let top = +((topPix / window.innerHeight) * 100).toFixed(2);
    const maxTop = Math.ceil(((window.innerHeight - parseFloat(target.style.height)) / window.innerHeight) * 100);
    const maxLeft = Math.ceil(((window.innerWidth - parseFloat(target.style.width) - 8) / window.innerWidth) * 100); // 8 边界值

    if (top > 0) {
      top = top >= maxTop ? maxTop : top;
    } else {
      top = 0;
    }
    if (left > 0) {
      left = left >= maxLeft ? maxLeft : left;
    } else {
      left = 0;
    }

    // console.log(top, left);
    target.style.top = `${top}%`;
    target.style.left = `${left}%`;
  }

  function register() {
    const dom = document.querySelector(pDomSelector) as HTMLDivElement;
    if (!dom) return;
    dom.addEventListener('touchstart', touchstart);
    dom.addEventListener('touchmove', touchmove);
    dom.addEventListener('touchend', touchend);
    dom.addEventListener('touchcancel', touchcancel);
  }

  function unregister() {
    const dom = document.querySelector(pDomSelector) as HTMLDivElement;
    if (!dom) return;
    dom.removeEventListener('touchstart', touchstart);
    dom.removeEventListener('touchmove', touchmove);
    dom.removeEventListener('touchend', touchend);
    dom.removeEventListener('touchcancel', touchcancel);
  }

  onBeforeUnmount(() => {
    unregister();
  });

  return {
    register,
    unregister,
  };
}

Camera.vue

<template>
  <div class="video-wrap">
    <canvas ref="canvasRef" class="item"></canvas>
    <video ref="videoRef" class="item"></video>
    <t-loading v-if="loading" size="small" class="loading" text="视频加载中……"></t-loading>
  </div>
</template>

<script setup lang="ts">
import { shallowRef, onBeforeUnmount, ref } from 'vue';
import { createElement } from '@cloudbase/utils';
import { urlInfo, channelEnum, streamEnum } from './CONSTANST';

const options = {
  wsURL: `${urlInfo.cameraConnProtocol}://${urlInfo.cameraConnHost}:${urlInfo.cameraConnWSPort}/rtspoverwebsocket`,
  /**
   * subtype 流的枚举 0 主码流，1 辅码流1，(2辅码流2 不可用)
   */
  rtspURL: `rtsp://${urlInfo.cameraConnHost}:${urlInfo.cameraConnRTSPPort}/cam/realmonitor?channel=1&subtype=0&proto=Private3`,
  username: 'username', // TODO
  password: 'password, // TODO
  /**
   * h264 video 解码
   * h265 canvas 解码
   */
  h265AccelerationEnabled: true,
};

const canvasRef = shallowRef(null);
const videoRef = shallowRef(null);

const loading = ref(false);

let player = null;
const defaultCameraConf = { channel: channelEnum.normal, subtype: streamEnum.main };
async function init(cameraOpt = defaultCameraConf) {
  loading.value = true;
  await loadCameraPlayerControlPlugin();
  const canvas = canvasRef.value;
  const video = videoRef.value;
  // 拼接摄像机拉流地址信息
  const rtspURL = `rtsp://${urlInfo.cameraConnHost}:${urlInfo.cameraConnRTSPPort}/cam/realmonitor?channel=${
    cameraOpt.channel || channelEnum.normal
  }&subtype=${cameraOpt.subtype || streamEnum.main}&proto=Private3`;
  options.rtspURL = rtspURL;
  player = new (window as any).PlayerControl(options);

  player.on('WorkerReady', () => {
    player.connect(); // 启动ws推流链接
  });
  player.on('DecodeStart', (rs) => {
    // console.log('start decode', rs);
    if (rs.decodeMode === 'video') {
      video.style.zIndex = '2';
      canvas.style.zIndex = '1';
    } else {
      video.style.zIndex = '1';
      canvas.style.zIndex = '2';
    }
  });
  player.on('PlayStart', () => {
    setTimeout(() => {
      loading.value = false;
    }, 150);
  });
  player.on('Error', (err) => {
    loading.value = false;
    console.log('camer live err:', err);
  });

  player.init(canvas, video);
}

onBeforeUnmount(() => {
  if (player && player.close) {
    player.close(); // 关闭ws推流链接
    player = null;
  }
});

defineExpose({
  init,
});
</script>
<script lang="ts">
async function loadCameraPlayerControlPlugin() {
  const cameraPlayerControl = document.querySelector('#cameraPlayerControl');
  if (!cameraPlayerControl) {
    await createElement(document.body, 'script', { src: '/module/PlayerControl.js', id: 'cameraPlayerControl' });
  }
}
export {
  /**
   * 加载 照相机播放插件
   */
  loadCameraPlayerControlPlugin,
};
</script>

<style lang="less" scoped>
.video-wrap {
  position: relative;
  video {
    object-fit: fill;
  }
  .item {
    position: absolute;
    width: 100%;
    height: 100%;
    border-radius: 5px;
  }
  .loading {
    position: absolute;
    top: 0;
    right: 0;
    bottom: 0;
    left: 0;
    background-color: rgba(255, 255, 255, 0.35);
    z-index: 2;
    display: flex;
    flex-direction: column;
    :deep(.t-loading__text) {
      font-size: 0.75rem;
    }
  }
}
</style>

index.vue

<template>
  <Transition>
    <div
      v-if="visible"
      :id="cameraLiveDomID"
      class="camera-live-wrapper"
      :style="{
        left: cameraLiveDomStyle.defaultLeft,
        top: cameraLiveDomStyle.defaultTop,
        width: `${cameraLiveDomStyle.defaultWidth}px`,
        height: `${cameraLiveDomStyle.defaultHeight}px`,
      }"
    >
      <t-close-icon name="close-icon" class="close-icon" @click="close" />
      <div class="cus-dialog-header">
        <div id="cameraDomMoveIcon" class="item move"><t-move-icon />移动</div>
        <div class="item" @click="zoomMin(zoomMinEnum.moveLbMin)">缩小至左下角</div>
        <div class="item" @click="zoomMin(zoomMinEnum.moveRbMin)">缩小至右下角</div>
        <t-button
          variant="text"
          class="item"
          theme="primary"
          size="small"
          :loading="capturing"
          @click="handleCapturePicture"
        >
          抓拍
        </t-button>
      </div>
      <div class="cus-dialog-container">
        <camera ref="cameraRef" />
        <camera ref="cameraThermRef" />
      </div>
    </div>
  </Transition>
</template>
<script setup lang="ts">
import { ref, shallowRef, nextTick } from 'vue';
import { MessagePlugin } from 'tdesign-vue-next';
import { CloseIcon as TCloseIcon, MoveIcon as TMoveIcon } from 'tdesign-icons-vue-next';
import { Robot, RobotCameraAlarmMsg } from '@cloudbase/api/dcos';
import Camera, { loadCameraPlayerControlPlugin } from './Camera.vue';
import { channelEnum, streamEnum, zoomMinEnum, cameraLiveDomStyle } from './CONSTANST';
import { DomZoomScale, TouchScale } from './useDomResize';
import { DomZoomMove, TouchMove } from './useDomMove';

/**
 * 标识是否为触摸屏设备
 */
const isTouchDevice = 'ontouchstart' in window;
let domMove;
let domScale;
const cameraLiveDomID = 'cameraLiveWrapper';
if (isTouchDevice) {
  domMove = TouchMove(`#${cameraLiveDomID}`);
  domScale = TouchScale(`#${cameraLiveDomID}`); // 移动端两指缩放
} else {
  domMove = DomZoomMove(`#${cameraLiveDomID}`); // pc端 鼠标左键按住 #cameraDomMoveIcon 元素进行移动
  domScale = DomZoomScale(`#${cameraLiveDomID}`);
}

let robotOverviewInfo: Robot.TsRobotViewVO = {} as any;

const visible = ref(false);
function showDialog(info: Robot.TsRobotViewVO) {
  robotOverviewInfo = info;
  visible.value = true;
  initCamera();
  nextTick(() => {
    domMove.register('#cameraDomMoveIcon');
    domScale.register();
  });
}

function close() {
  visible.value = false;
  const event = new CustomEvent('changeCameraLiveStatus', {
    detail: { cameraLiveStatus: false },
  });
  window.dispatchEvent(event);
}

const cameraRef = shallowRef(null);
const cameraThermRef = shallowRef(null);
async function initCamera() {
  await loadCameraPlayerControlPlugin();
  cameraRef.value?.init({ channel: channelEnum.normal, subtype: streamEnum.auxiliary1 });
  cameraThermRef.value?.init({ channel: channelEnum.therm, subtype: streamEnum.auxiliary1 });
}

function zoomMin(type: zoomMinEnum) {
  const dom = document.getElementById('cameraLiveWrapper');
  if (dom) {
    dom.style.minWidth = `${cameraLiveDomStyle.minW}px`;
    dom.style.width = `${cameraLiveDomStyle.minW}px`;
    dom.style.height = `${cameraLiveDomStyle.minH}px`;
    const top = +(((window.innerHeight - cameraLiveDomStyle.minH) / window.innerHeight) * 100).toFixed(2);
    dom.style.top = `${top}%`;
    if (type === zoomMinEnum.moveLbMin) {
      dom.style.left = '0';
    } else {
      const left = +(((window.innerWidth - cameraLiveDomStyle.minW) / window.innerWidth) * 100).toFixed(2);
      dom.style.left = `${left}%`;
    }
  }
}

const capturing = ref(false);
function handleCapturePicture() {
  capturing.value = true;
  RobotCameraAlarmMsg.requestCapturePicture({ robotId: robotOverviewInfo.id }).then(() => {
    capturing.value = false;
    MessagePlugin.success('抓拍成功');
  });
}

defineExpose({
  showDialog,
});
</script>

<style scoped lang="less">
.camera-live-wrapper {
  transform: translateZ(0);
  position: absolute;
  z-index: 999;
  padding: 5px;
  padding-top: 25px;
  min-width: 280px;
  background-color: rgba(255, 255, 255, 0.95);
  border-radius: 10px;
  filter: drop-shadow(0 0 6px rgba(0, 0, 0, 0.3));

  .cus-dialog-header {
    position: absolute;
    z-index: 5;
    top: 0;
    left: 0;
    display: flex;
    align-items: center;
    .item {
      cursor: pointer;
      padding: 5px;
      user-select: none;
      font-size: 12px;
    }
    :deep(.t-button--variant-text) {
      &:hover,
      &:focus-visible {
        background: none;
        border-color: transparent;
      }
    }
    .move {
      padding-left: 4px;
      cursor: move;
      display: flex;
      align-items: center;
      :deep(.icon) {
        width: 18px;
        height: 18px;
      }
    }
  }

  .cus-dialog-container {
    height: 100%;
    display: flex;
    flex-direction: row;
    align-items: center;
    justify-content: space-between;
    column-gap: 5px;
    :deep(.video-wrap) {
      width: 50%;
      height: 100%;
      flex-grow: 1;
    }
  }

  .close-icon {
    position: absolute;
    z-index: 9;
    top: 5px;
    right: 5px;
    width: 20px;
    height: 20px;
    padding: 4px;
    background-color: #fff;
    border-radius: 50%;
    box-shadow: 2px 2px 16px -10px #000;
    cursor: pointer;
    &:hover {
      transform: scale(1.25);
      transition: all 0.35;
    }
  }
}

.v-enter-active,
.v-leave-active {
  transition: all 0.3s ease;
}

.v-enter-from,
.v-leave-to {
  opacity: 0;
  transform: translateY(-30px);
}
</style>

useCamera.ts 函数的方式调用(可全局挂载)

import { ref, createApp, h } from 'vue';
import CameraLive from './index.vue';

interface RobotViewVO {

}

/**
 * 摄像机组件实例
 */
let cameraLiveIns;
let app;
const showCameraLiveDialog = ref(false);
export function useCreateCameraLive() {
  function openCameraLive(info: RobotViewVO) {
    if (!document.getElementById('cameraLiveBox')) {
      const dom = document.createElement('div');
      dom.id = 'cameraLiveBox';
      document.body.append(dom);
    }

    app = createApp({
      render() {
        cameraLiveIns = h(CameraLive);
        return cameraLiveIns;
      },
    });
    app.mount('#cameraLiveBox');
    // console.log(cameraLiveIns);
    if (cameraLiveIns.component?.exposed?.showDialog) {
      cameraLiveIns.component.exposed.showDialog(info);
      window.addEventListener('changeCameraLiveStatus', closeCameraLive);
    }
  }
  function closeCameraLive() {
    showCameraLiveDialog.value = false;
    window.removeEventListener('changeCameraLiveStatus', closeCameraLive);
    const dom = document.getElementById('cameraLiveBox');
    if (dom) {
      dom.remove();
    }
    cameraLiveIns = null;
    if (app) {
      app.unmount();
      app = null;
    }
  }

  return {
    openCameraLive,
    closeCameraLive,
    showCameraLiveDialog,
  };
}

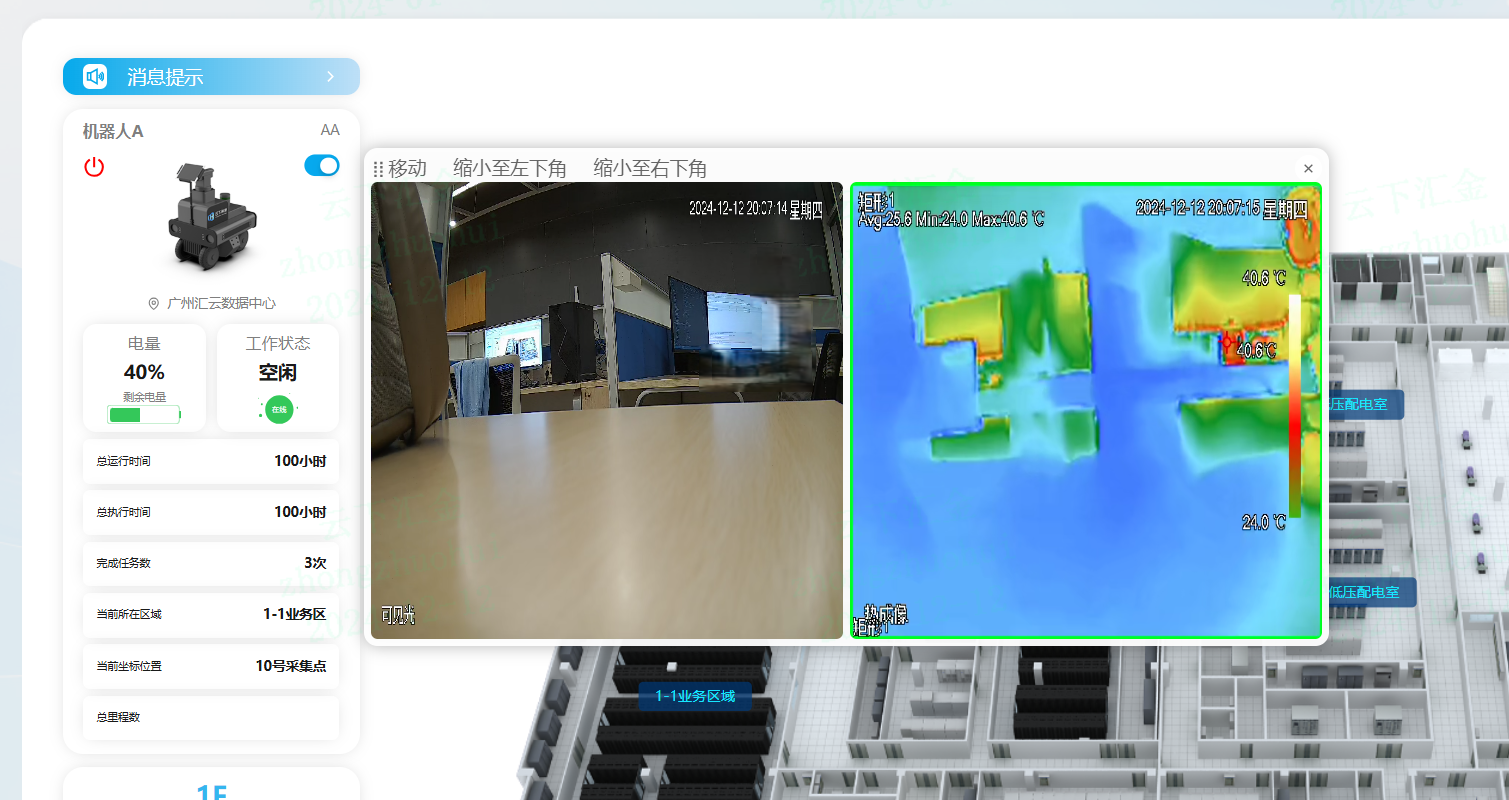

效果图
